Dragon/CoCo Interface Ports

These are the pinouts for all the interface ports on Dragon/CoCo(1 & 2).

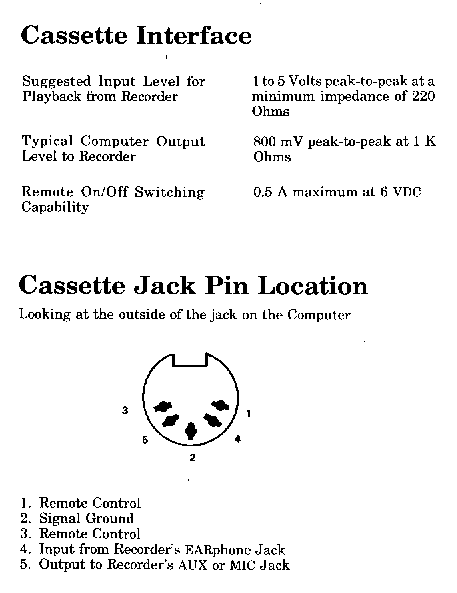

Cassette Port

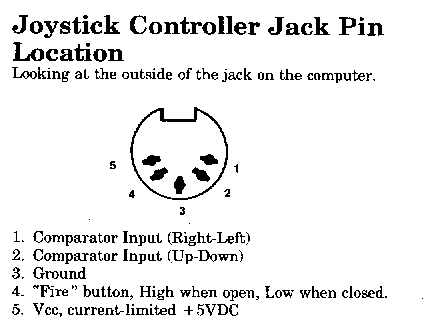

Joystick Port

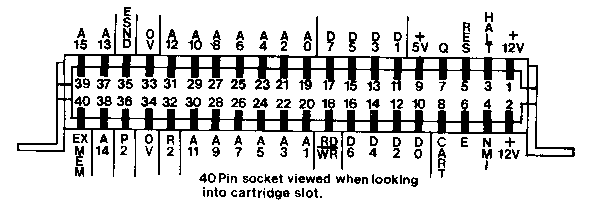

Cartridge Port



I seem to recall there was some doubt about the presence of the 12V power rails on some/all of the CoCo variants. Somebody might like to put me right on this one.

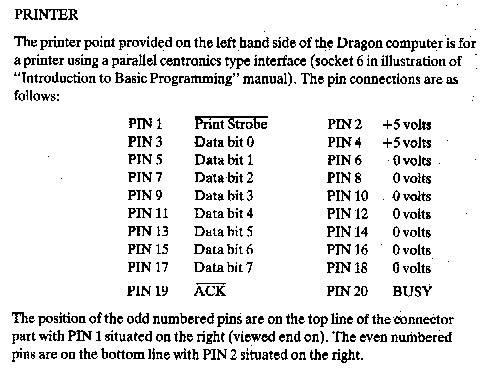

Centronics Printer Port (Dragon)

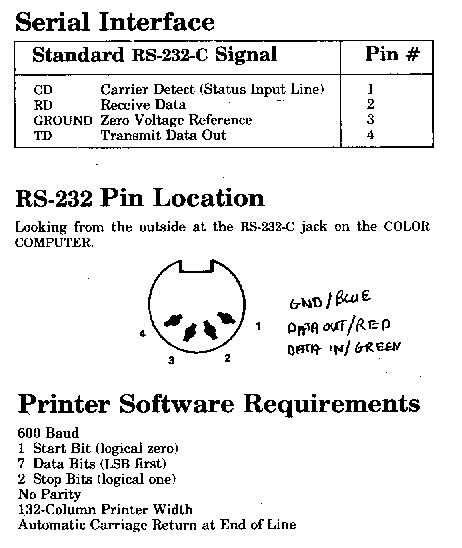

Serial/Printer Port (CoCo) 'bit banger'

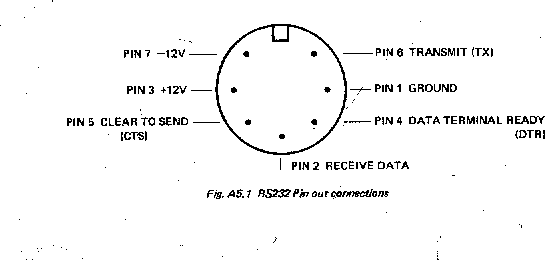

Serial/Printer Port (Dragon)





Composite (Video) Port (Dragon)



Power Supply Port (Dragon)
